£849.00

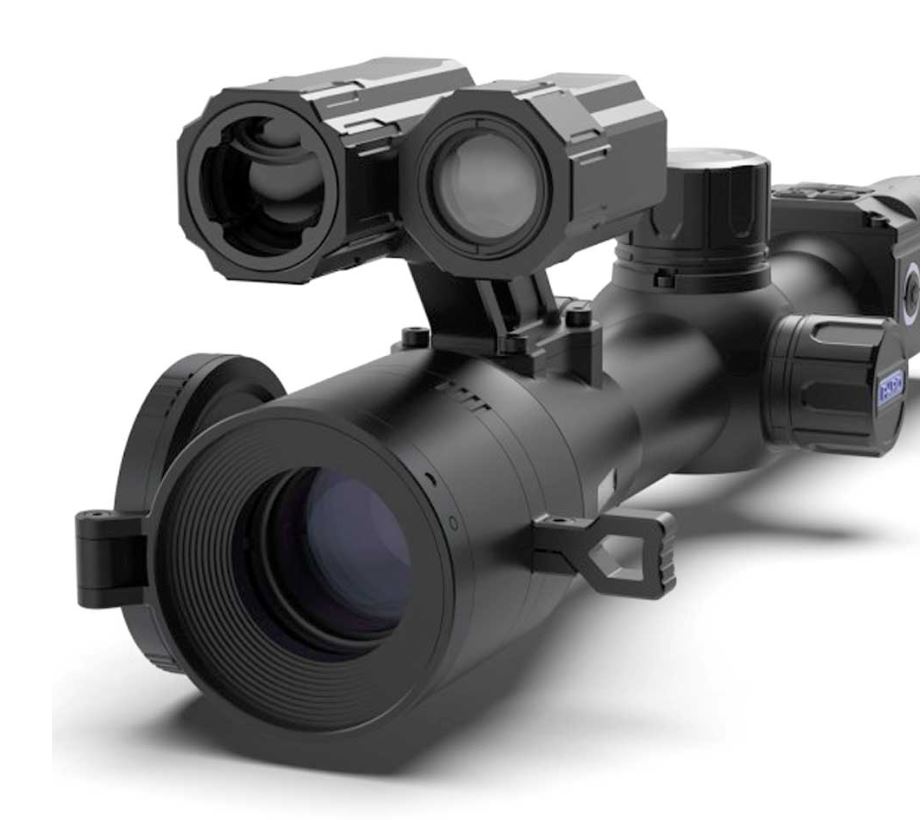

Released this Autumn the Pard DS35 is a revolutionary new optic that builds on the massive success of the NV008s.

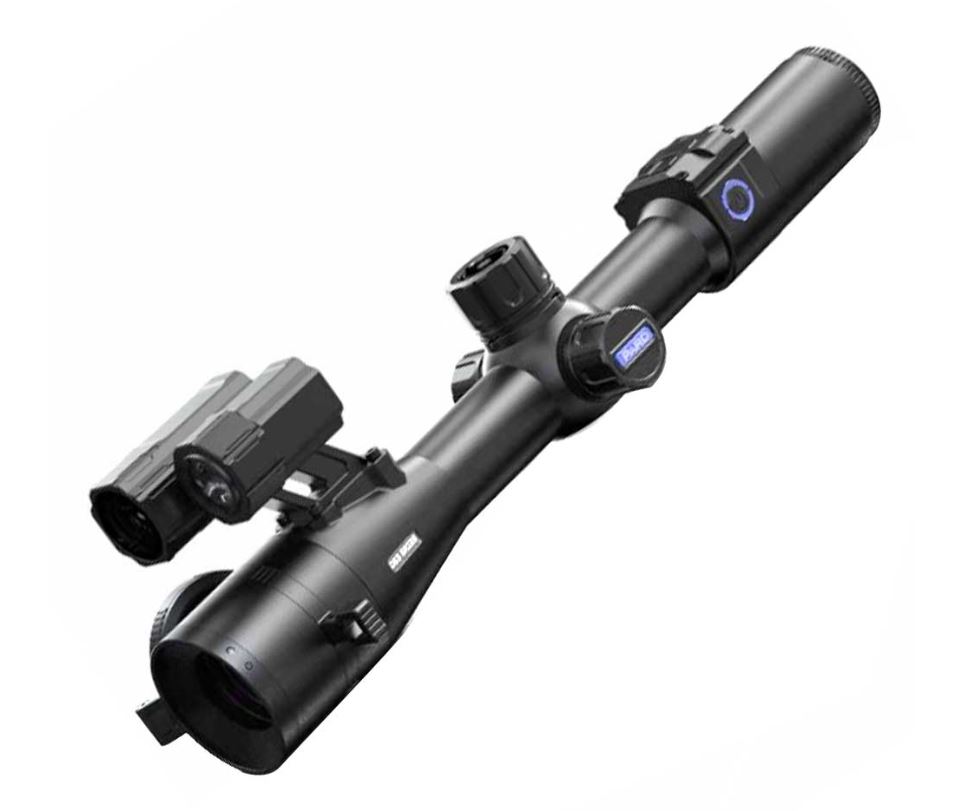

The first thing that users will notice is that the DS35 now takes the form of a traditional rifle scope. Core to the new form factor is a world first for NV Scopes, an 800x800px round display. The unique LTPS unit delivers high-clarity images with rich contrast and an extra-wide field of view for enhanced situational awareness. This perfectly formed screen fits neatly in the DS35s eye piece, for an experience close to using a traditional glass day scope. Other advantages include a 70mm objective, 5.6-11.2x magnification range and a 30mm Aluminium alloy body that enables the use of both traditional scope rings and rifle specific mounting systems.
At the heart of the DS35 is a state-of-the-art CMOS 0.001 Lux 2K imaging sensor, which when coupled with the units directional 850nm IR can see user push their night shooting out to 350m and beyond. Clarity is further enhanced by Pards custom developed VLEA imaging engine. This clever software upgrade helps the DS boost clarity by over 20% when compared to the older NV008p models.
Whilst clarity and handling are two of the 35 LRFs most obvious features, they are not the only enhancements shooters can expect.
The new kid on the block features a more intuitive one shot zero, where the image shifts to compensate for elevation and windage adjustments. On the LRF models shooters also benefit from a 1000m rangefinder with a built-in on-screen ballistic calculator, which delivers the shooter an instant hold over and an unrivalled level of accuracy.
Like other Pard models the DS35 is a great choice for both day and night use, with full colour image modes available until the darkest parts of the night, at which point users can switch colour pallets for optimal image recognition when they can make use of the units powerful built-in IR.
In addition to improved tech, the DS35 retains all the popular features of the previous models including Wifi Connectivity, self-activated recording and a fully waterproof construction.
Key features
Specifications
Model | DS35 |
Sensor | |
Resolution | 2560x1440px |
Pixel Size | 2.9µm |
Sensitivity | 0.001lx |
Frame Rate | Colour 60fps B&W 30fps |
Image Engine | PARD VLEA |
Optics | |
Objective Lens | 70mm F2.4 |
Optical Magnification | 5.6x |
Digital Zoom | 2x |
Continuous Digital Zoom | 5.6-11.2 |
Field of View (HxV) | 3.4 3.4 4.8 |
Focus Range | 5m- |
Eye Relief (mm) | 100 |
Exit Pupil (mm) | 10 |
Display | |
Type | IPS LCD |
Resolution | 800x800px |
Reticle Style | 6 |
Reticle Colour | White / Yellow / Green |
Colour Mode | Colour / Mono BW / Mono Green / Mono Yellow |
Photo / Video | |
Photo Resolution | 2560x1440px |
Photo Format | JPG |
Video Resolution | 1920x1080px |
Video Format | MP4 |
Storage | TF card (128GB) |
Power Supply | |
Battery Type | Lithium Ion18650*1 |
Output Voltage | 3.7V |
Operating Time | 8hrs Max |
External Power Supply | USB-C |
